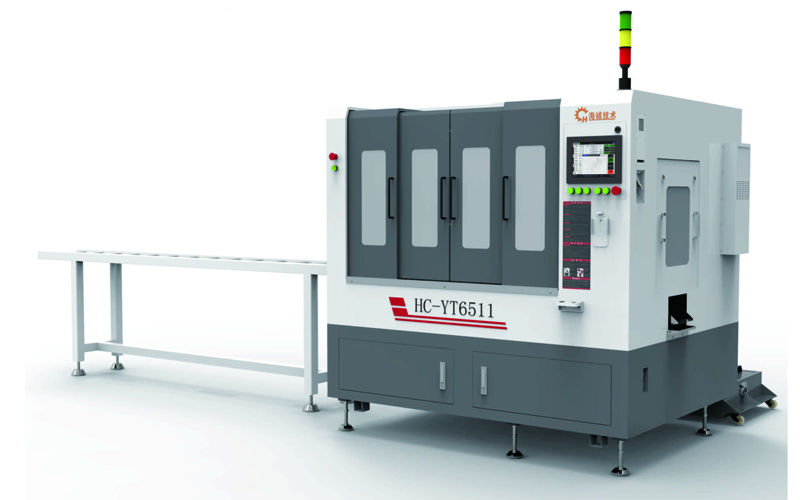

HC-YT6511 Heat Sink Processing with 2-Side Composite Drilling & Tapping Center
- Adopts composite structure design for integrated raw material input and finished product output.
- Features an intelligent operating system, supporting direct USB graphic file import without G-code programming.
- Enables independent drilling, tapping and cutting, with fast synchronous operation and unique advantages for processing two-specification hole products.
- Supports multi-channel synchronous automatic processing, enabling non-stop continuous production to maximize efficiency and reduce costs.
- Equipped with a high-pressure water gun and bottom flushing system for easier machine cleaning and maintenance.
Description
Heat Sink Processing with Haicheng 2-Side Composite Drilling & Tapping Center.

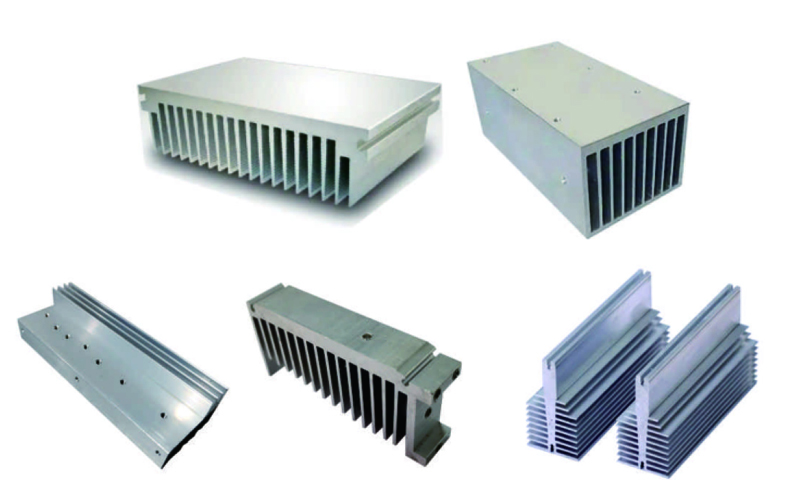

Heat sink is a core component in electronic equipment, industrial machinery, LED lighting and new energy industries, and its processing quality directly determines the performance and service life of the equipment. Traditional heat sink processing methods require multiple clamping, manual tool change and separate operations of drilling, tapping and cutting, which have low efficiency, high labor costs, large processing errors and unstable product quality, which have become the pain points restricting the production efficiency of heat sink manufacturers.
Haicheng Technology's HC-YT6511/HC-YT6516 2-side composite drilling & tapping center is specially developed for the mass production of heat sinks, which integrates drilling, tapping and cutting functions in one machine, realizing automatic processing from raw material input to finished product output in one clamping, completely solving the pain points of traditional processing and helping heat sink manufacturers achieve efficient, precise and automated production.
1. Core Advantages of Haicheng Heat Sink Processing Solution
1.1 One Clamping, Multi-Process Synchronous Processing

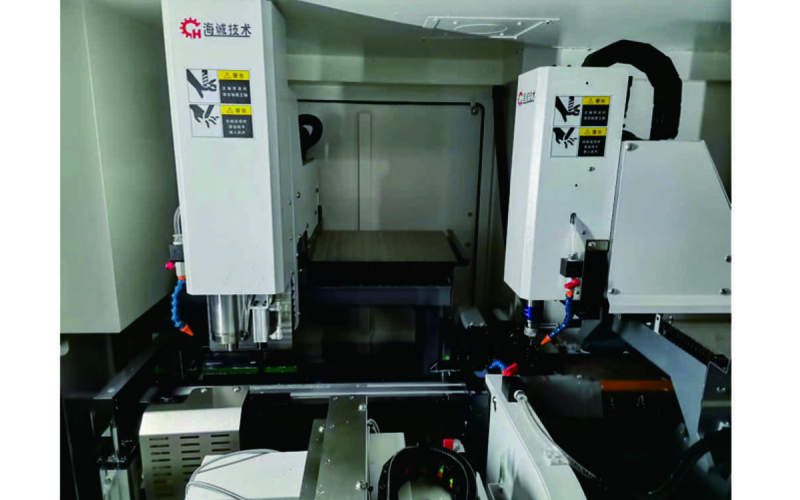

The HC-YT6511/HC-YT6516 adopts an independent spindle design for drilling, tapping and cutting, which can complete drilling, tapping and cutting on the top surface and both side surfaces of the heat sink raw material at the same time without tool change. Compared with traditional processing methods, it eliminates the time of multiple clamping and tool change, and the processing efficiency is increased by more than 30%, which is especially suitable for mass production of heat sinks.
1.2 Intelligent Programming, Easy Operation
Equipped with an intelligent operating system, it supports direct import of CAD drawings via USB, no need for manual G-code programming, which greatly simplifies the programming process and reduces the technical threshold for operators. Even inexperienced workers can quickly master the operation, shortening the production preparation time and improving the overall production efficiency of the workshop.
1.3 High Precision, Stable Product Quality
The machine is equipped with high-precision Taiwan screw rail guide and servo motor, with positioning accuracy of ±0.05/300mm and repetitive positioning accuracy of ±0.02/300mm, ensuring the consistency of hole position and thread quality of each heat sink, reducing the defective rate and improving the product qualification rate.
1.4 Continuous Uninterrupted Processing, Cost Reduction and Efficiency Increase
It supports uninterrupted continuous processing, can complete tapping and cutting while drilling, maximize the use of equipment potential, reduce labor intensity, and a single operator can manage multiple machines, effectively reducing labor costs. At the same time, the integrated design reduces the investment of multiple single-process equipment, saving workshop space and equipment procurement costs.
1.5 Easy Maintenance, Long-Term Stable Operation
Equipped with a high-pressure water gun and bottom-edge flushing water system, it can quickly clean the machine tool, reduce the difficulty of daily maintenance, ensure the long-term stable operation of the equipment, reduce downtime and improve the overall production efficiency of the enterprise.
2. Complete Heat Sink Processing Flow with Haicheng Machine
The whole processing flow is fully automated, with simple operation and high efficiency, which can be completed in 4 steps:
Raw Material Feeding: Put the aluminum profile/heat sink raw material into the feeding rack of the HC-YT6511/HC-YT6516 machine, and the machine will automatically feed the material.
Program Setting: Import the CAD drawing of the heat sink through the USB disk, set the processing parameters, and the system will automatically generate the processing program without manual G-code writing.

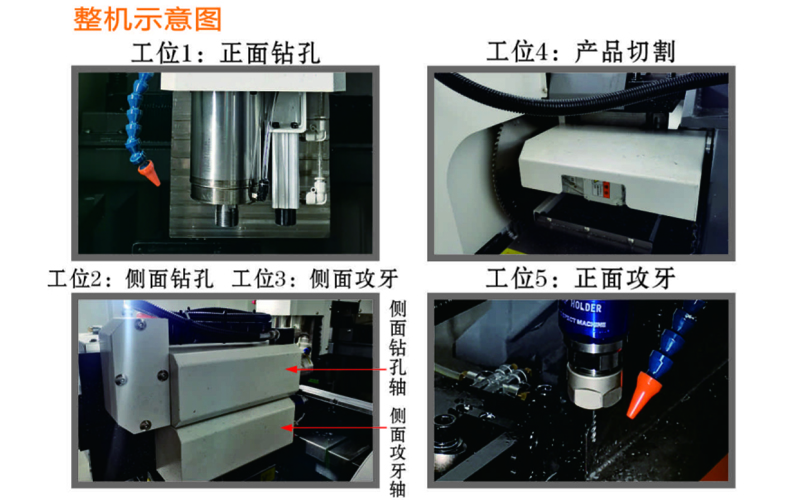

One-Clamping Processing: The machine clamps the raw material firmly, and the independent spindles complete drilling, tapping and cutting on the top and both sides of the heat sink synchronously.
Finished Product Output: After processing, the finished heat sink is automatically output, and the next batch of raw materials is automatically fed in for continuous processing.
3. Why Choose Haicheng 2-Side Composite Drilling & Tapping Center for Heat Sink Processing?
3.1 Professional Customization, Perfectly Match Your Production Needs
We support customized solutions according to the size, processing requirements and output of your heat sink products, such as extending the Z-axis travel, customizing special fixtures, optimizing the processing flow, etc., to ensure that the machine perfectly matches your production line.
3.2 Global After-Sales Support, No Worry for Use
All our machines are ISO and CE certified, with strict quality control throughout the production process, and we provide a one-year warranty for all spare parts. Our professional after-sales team provides 24-hour online technical support, and can provide on-site installation, debugging and training services according to customer needs.
3.3 Cost-Effective, Suitable for Small and Medium-Sized Enterprises
Compared with imported equipment of the same level, Haicheng's 2-side composite drilling & tapping center has a more competitive price, while ensuring the same processing accuracy and efficiency, helping small and medium-sized heat sink manufacturers achieve automated production upgrades with lower costs.
4. Application Cases
A heat sink manufacturer in Southeast Asia used to adopt traditional manual processing, with a daily output of only 800 pieces, and the defective rate was as high as 5%. After introducing Haicheng HC-YT6511 2-side composite drilling & tapping center, the daily output increased to 1500 pieces, the defective rate was reduced to less than 0.5%, the labor cost was reduced by 60%, and the production efficiency was greatly improved, which brought huge economic benefits to the enterprise.
5. Get Your Customized Heat Sink Processing Solution
If you are looking for an efficient, precise and automated heat sink processing solution, Haicheng Technology's 2-side composite drilling & tapping center is your ideal choice. Send us your heat sink product drawings, processing requirements and expected output, and our professional engineers will provide you with a tailored solution and quotation within 24 hours.
