Composite Drilling and Tapping Center | HC-YT1316C CNC Machine | Haicheng Technology
- Professional CNC composite drilling tapping center for aluminum profile, auto parts, heat sinks. Haicheng Technology factory direct supply.
Description

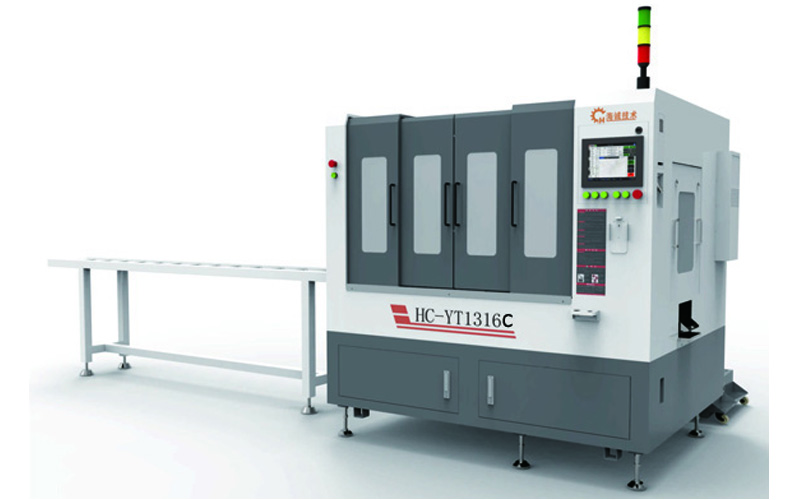

HC-YT1316C Upgraded Composite Drilling & Tapping Center.
The HC-YT1316C is the high-power upgraded version of our composite drilling and tapping CNC machine, specially developed for mass production factories, large aluminum profile workshops, automotive component manufacturers and aluminum heat sink production lines. It integrates automatic drilling, tapping and cutting into one single process, realizing full one-stop processing from raw material feeding to finished output. Compared with the standard model, the HC-YT1316C adopts stronger spindle power, optimized mechanical structure and upgraded cooling system, which ensures stable running for long-time continuous production.
Core Advantages of HC-YT1316C.
One-Stop Processing from Raw Material to Finished Product.
Intelligent Programming System, No G-Code Required.
Multi-Process Synchronous Machining, High Efficiency & Labor Saving.
Easy Maintenance with High-Pressure Water Cleaning System.
✅ Higher Spindle Power for Heavy-Duty Machining Equipped with 3.2KW high-power main spindle, this machine provides stronger cutting force, faster drilling speed and more stable tapping performance. It perfectly supports large batch production and harder aluminum alloy materials.
✅ Intelligent USB Programming, No Complicated G-Code Operators can import design files directly via USB flash drive. No professional G-code programming is needed. New workers can operate the machine skillfully within a very short time, greatly reducing training cost and human error.

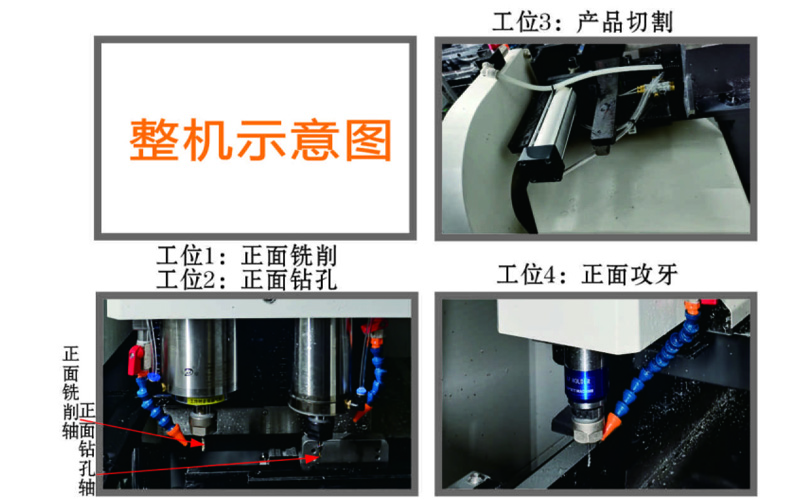

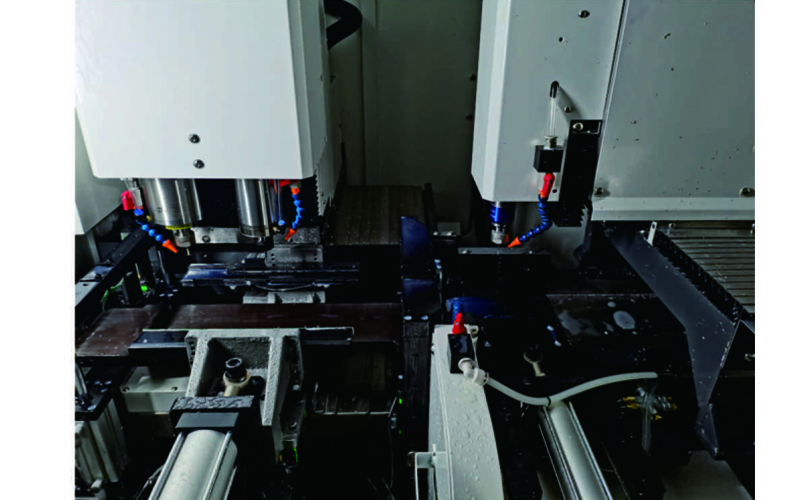

✅ One-Stop Drilling, Tapping , milling& Cutting .All three working processes are finished on one station. No need to move workpieces between different machines. It saves labor, reduces positioning errors and improves production efficiency by more than 70%.
✅ Reinforced Body Structure for Long-Term Operation The whole machine body is thickened and reinforced to avoid vibration during high-speed processing. It keeps high precision even after running 24 hours continuously.
✅ Advanced Cooling & Cleaning System Built-in high-pressure water cleaning system and upgraded dual-circulation cooling system effectively remove aluminum chips, reduce tool wear and extend the service life of spindles and cutters.
✅ Perfect for Mass Production This upgraded model is designed specifically for large factories with daily high output. It replaces multiple traditional machines and saves factory space and worker cost obviously.
Technical Parameters | Item | Unit | HC-YT1316C | .
| Item | Specification | Item | Specification | Item | Specification | Standard Configuration |
| X/Y/X-axis travel | 130/160/100 mm | Tapping spindle speed | 0-3000rpm | Cutting fast feed | 15 m/min | Taiwan screw guide |
| Feeding stroke | 130 mm | Tapping diameter range | M2-M6 | Cutting feed | 0-10000 mm/min | Intelligent programming system |
| Cutting stroke | 420 mm | Cutting spindle speed | 0-6000rpm | Positioning accuracy | ±0.05mm/300m | Servo motor |
| Max size of raw materials | W160xL90mm | Cutting Spindle specification | Φ30 | Repositioning accuracy | ±0.02mm/300mm | Dual electric pump cooling system |
| Distance of spindle to workbench | 25-125 mm | Cutting tool change mode | manual | Air pressure | 6±0.5 | Handwheel simulation |
| Drilling spindle speed | 0-24000rpm | Saw blade capacity | 1 piece | Total power | 10.5KW | Full cover protection |
| Drilling spindle power | 3.2/2.2KW | Max saw diameter | Φ405 | Machine size | 1950x1550x1850 mm | Micro-lubrication cooling system |
| Drilling spindle collet | ER20 | X/Y/Z fast feed speed | 30/30/15 m/min | Net weight | 2000 kg | |
| Tool release mode | Manual | Feed speed | 0-30 m/min |
Application -profile drilling tapping cutting machine.
Aluminum profile mass production.

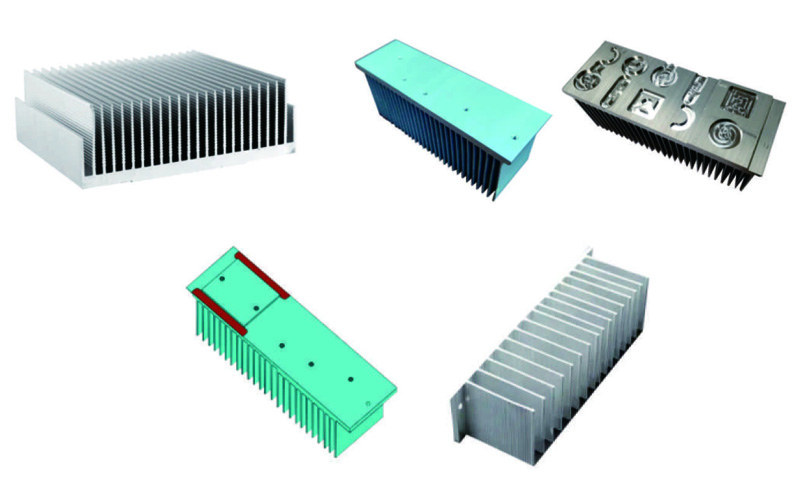

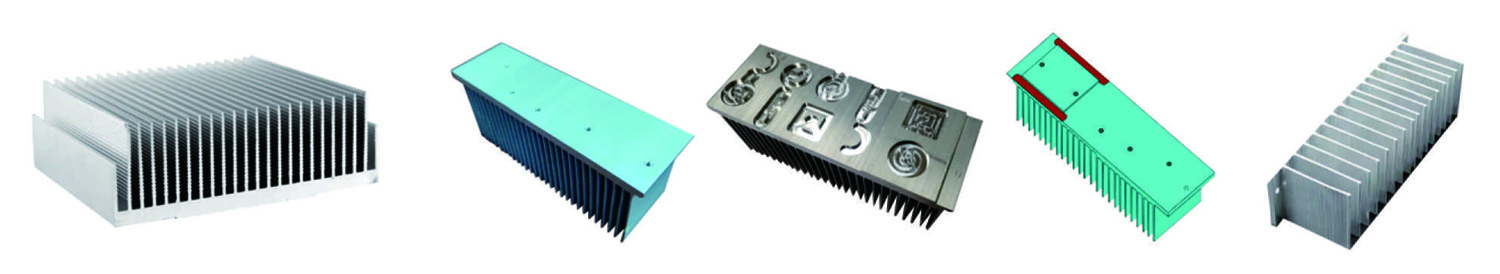

Aluminum heat sink for new energy & electronics.
Automotive structural parts and components.
3C electronic precision parts.
Large-scale customized profile processing factories.
After-sales Service.
We provide 1-year warranty, global on-site technical support (optional), operation training, customized processing solutions, and lifelong spare parts supply. Contact us to get a free customized quotation and factory visit arrangement.
