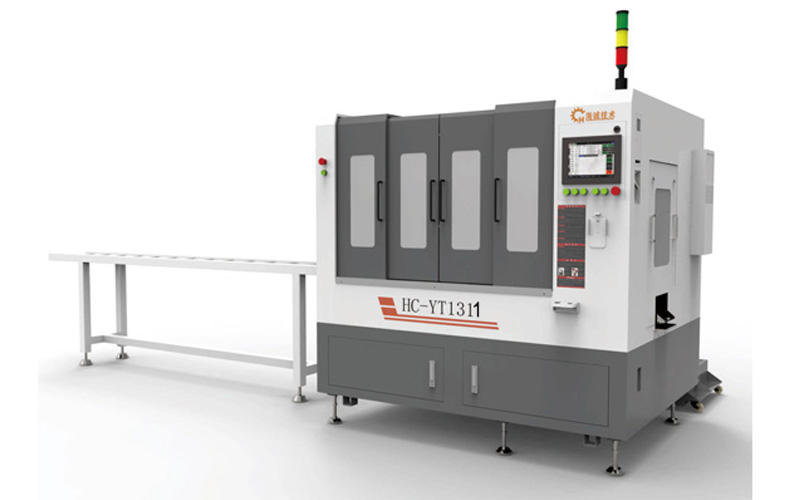

HC-YT1311 Compound Drilling & Tapping Center | Heat Sink Machining Equipment
- Heat Sink Drilling Tapping Cutting Machine
- 3-in-1 CNC Machining Center
- No G-code Programming
- High Efficiency Production.
Description
HC-YT1316 3-in-1 Compound Drilling & Tapping Center for High-Efficiency Heat Sink Manufacturing.
Haicheng Technology’s HC-YT1316 compound drilling & tapping center is a 3-in-1 CNC machining center specially designed for mass production of aluminum heat sinks and radiator fins. Integrating front drilling, front tapping, and heat sink cutting in one synchronous operation, this heat sink machining center eliminates the need for G-code programming, supports non-stop continuous processing, and fully utilizes drilling time to complete tapping and cutting simultaneously. It is the ideal solution for radiator manufacturers to improve production efficiency, reduce labor costs, and achieve automated, high-precision heat sink processing.
Key Advantages of HC-YT1316 Heat Sink Machining Center.

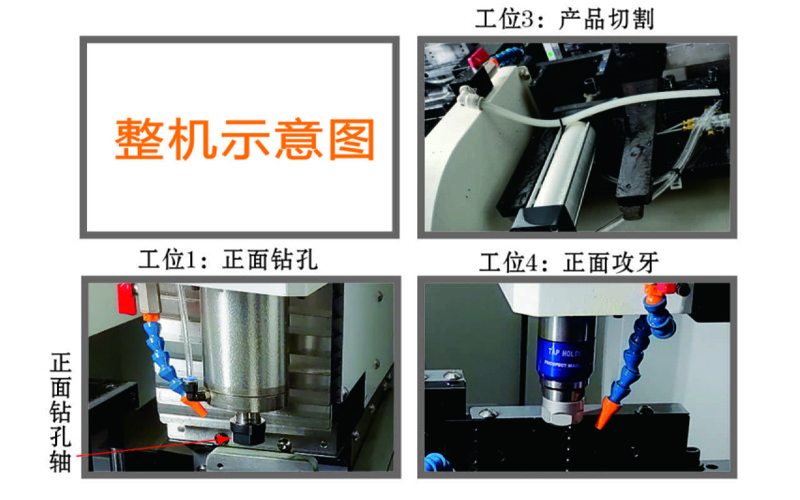

- Composite Structure Design for One-Stop ProcessingAdopting the principle of composite structure, this CNC drilling tapping cutting machine center realizes raw material input and finished product output in one workflow. It supports independent drilling, tapping, and cutting operations, with unique advantages in processing products with two different specifications of holes, enabling fast synchronous drilling and tapping speeds that far exceed traditional single-process equipment.
- Intelligent Operating System with No G-Code ProgrammingThe built-in intelligent operating system allows operators to import graphic files directly from a USB drive, completely eliminating the need for complex G-code programming. This heat sink processing machine lowers the technical threshold for operators, reduces training time, and enables quick production changeovers for different heat sink specifications, making it ideal for small-batch, multi-variety production.

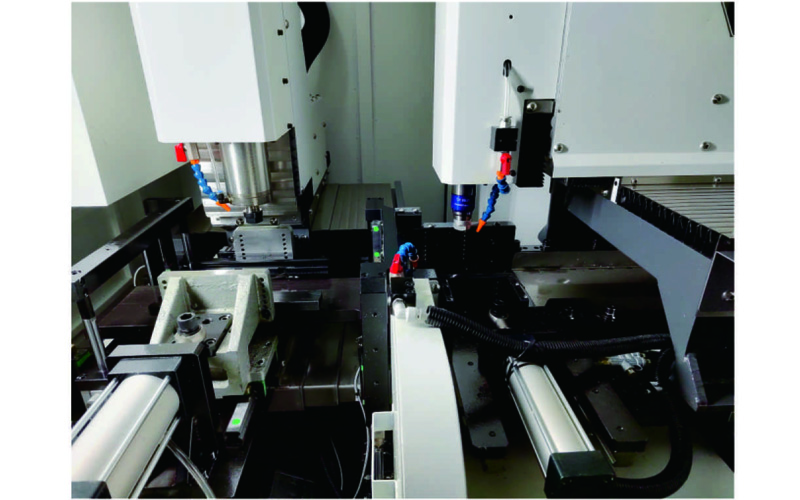

- Multi-Channel Synchronous Automatic Positioning for Non-Stop ProcessingEquipped with a multi-channel synchronous automatic positioning system, the HC-YT1316 compound drilling & tapping center supports non-stop continuous processing. It can fully utilize the drilling time to simultaneously complete tapping and cutting processes, maximizing production efficiency, reducing processing cycle time, and significantly lowering production costs for mass heat sink manufacturing.
- High-Pressure Water Gun Bottom Flushing System for Easy MaintenanceThe high-pressure water gun combined with the bottom flushing system makes the cleaning work of the machine much easier. It effectively removes chips and debris generated during heat sink cutting and drilling, ensuring long-term stable operation of the equipment and reducing maintenance downtime and costs.
- Dual Electric Pump Cooling System for Stable High-Load OperationThe dual electric pump cooling system ensures sufficient cooling during high-intensity, continuous processing, preventing overheating of the spindle and cutting tools. This guarantees consistent processing accuracy and extends the service life of the equipment, making it suitable for 24/7 mass production of aluminum radiator fins.
Technical Specifications of HC-YT1316 Compound Drilling & Tapping Center.
| Item | Specification | Item | Specification | Item | Specification | Standard Configuration | |
| X/Y/Z axis travel | 130/110/100mm | Tapping spindle speed | 0-3000rpm | Cutting fast feed | 15 m/min | Taiwan linear screw guide | |
| Feeding stroke | 130mm | Tapping range | M2-M6 | Cutting feed | 0-10000 mm/min | Handwheel simulation | |
| Cutting stroke | 420mm | Cutting spindle speed | 0-6000rpm | Positioning accuracy | ±0.05mm/300mm | Full-enclosed protective cover | |
| Max size of material | W110xH60mm | Spindle type | Shaft Diameter Φ30 | Repositioning accuracy | ±0.02mm/300mm | Intelligent programming system | |
| Distance of spindle end to workbench | 25-125mm | Tool change method | manual | Air pressure | 6+-0.5kg/cm2 | Servo motor | |
| Drilling spindle speed | 0-24000rpm | Saw capacity | 1 piece | Total power | 9KW | Dual electric pump cooling system | |
| Drilling spindle power | 2.2KW | Max saw blade diameter | Φ355mm | Machine size | 1750x1550x1850mm | Micro-lubrication cooling system(option) | |
| Drilling spindle collet | ER20 | X/Y/Z feed | 30/30/15 m/min | Net weight | 1500kg | ||
| Tool release mode | manual | Feed speed | 0-30 m/min |

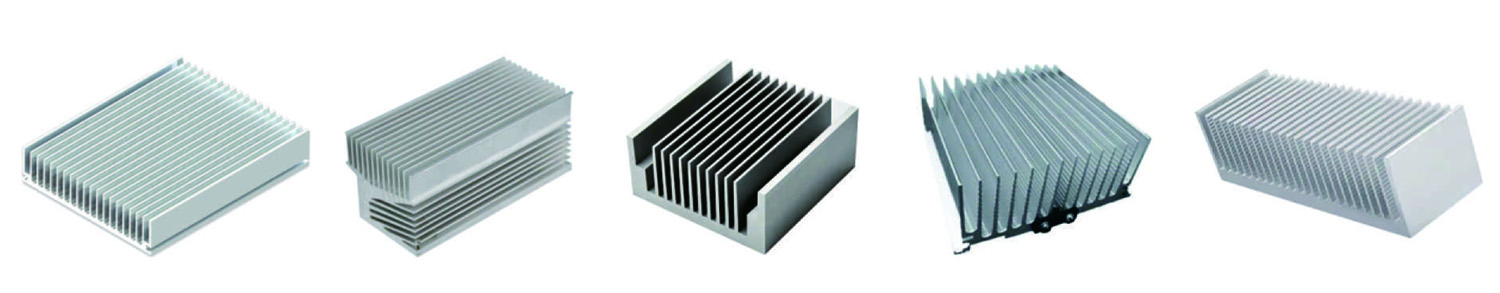

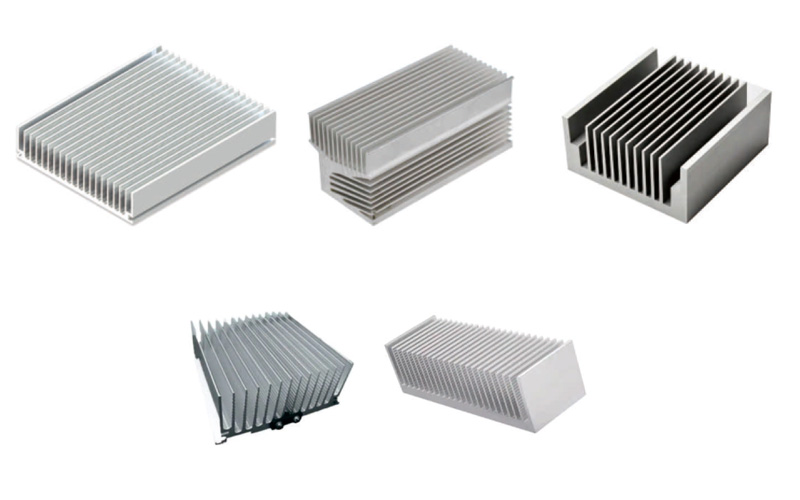

Applications of HC-YT1316 Heat Sink Processing Machine.
The HC-YT1316 3-in-1 compound drilling & tapping center is widely used in various industries that require high-efficiency heat sink and radiator fin processing, including:
New Energy Vehicle Industry: Processing aluminum heat sinks for power batteries, motor controllers, and on-board chargers.
Electronic & Electrical Industry: Manufacturing radiator fins for power supplies, inverters, servers, and LED lighting heat sinks.
Industrial Equipment Industry: Producing heat sinks for industrial control systems, frequency converters, and automation equipment.
Communication Industry: Processing heat dissipation components for 5G base stations and communication equipment.
Custom Heat Sink Manufacturing: Suitable for custom aluminum profile heat sinks with complex hole positions and fin structures.
If you are looking for a high-efficiency, cost-effective heat sink machining center for your radiator production line, the Haicheng HC-YT1316 compound drilling & tapping center is your best choice. We provide customized solutions, on-site installation guidance, and after-sales technical support for global customers.
Click to Get a Free Quote or contact our sales team to learn more about the HC-YT1316/HC-YT1311 heat sink processing machine.
Contact: Ms. Emily Zhang.
Email: [email protected].
WhatsApp/Wechat: 86-18038382758.
