Single-sided 2 drillings 2 tappings cutting integrated machine HC-YT2018-2
- Dual-spindle simultaneous machining
- One machine completes 3 processes
- Auto feed & discharge
- Easy intelligent operation
- Stable high accuracy
- Low maintenance cost
Description

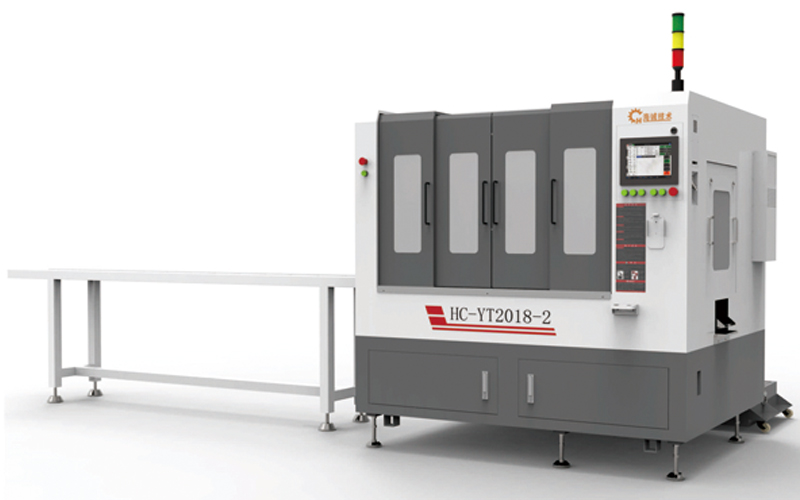

Single-sided 2 drillings 2 tappings cutting integrated machine HC-YT2018-2:
This dual-spindle CNC drill tap cut machine owns outstanding advantages in processing two specifications of aluminum profiles at the same time. Its two spindles complete drilling and tapping synchronously without frequent tool change, saving massive production time. With multi-channel synchronous automatic processing function, the machine can keep continuous non-stop production while finishing drilling, tapping and cutting procedures simultaneously. It effectively boosts processing efficiency, reduces labor intensity and labor cost for manufacturers of new energy aluminum heat sinks, PV inverter radiators, EV charging pile heat sinks and industrial control inverter aluminum profiles.
A built-in high-pressure water flushing system is matched at the machine base, making daily cleaning and maintenance of the equipment simpler and less time-consuming. All core configurations adopt Taiwan linear guide rails and dual electric pump cooling system, ensuring long-term stable machining precision.
Machine Highlights:
3-in-1 integrated function: drilling, tapping & cutting
Dual-head synchronous processing, compatible with 2 kinds of aluminum profiles
U-disk drawing input, intelligent control without complex G-code
Non-stop continuous automatic feeding & discharging
High-pressure base flushing system for easy maintenance
Customizable OEM & ODM for new energy heat sink production
Application Scope:

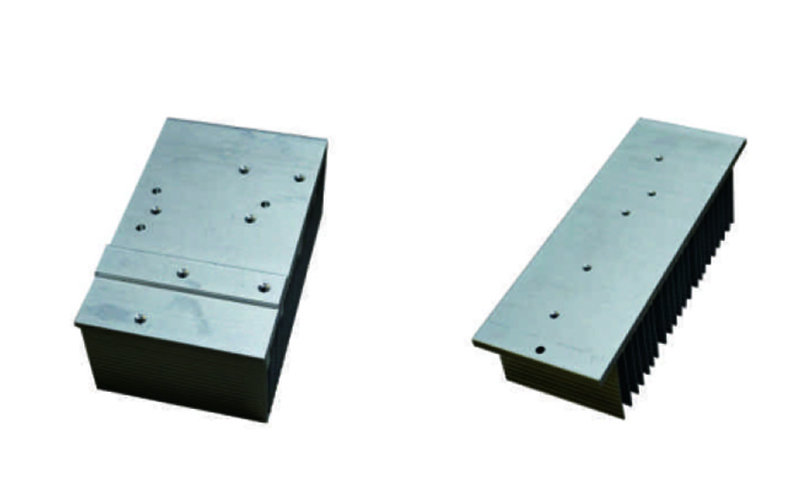

New energy electronic control aluminum heat sinks.
PV & energy storage inverter heat sinks.
EV charging pile aluminum profile heat sinks.
Telecom & air conditioner cooling heat sinks.
Industrial control inverter aluminum profiles.
Technical Parameter：
| Name | Specification | Name | Specification | Name | Specification |
| X-axis travel | 200mm | Distance between two drilling spindles | 130mm | Fast feeding for material feeding | 0-30m/min |
| Y-axis travel | 180mm | Tapping Spindle | Cut rapid feed | 15m/min | |
| Z-axis travel | 110mm | Tapping spindle speed | 0-3000rpm | Cut feed | 0-1000m/min |
| Feeding stroke | 200mm | Tapping range | M2-M6 | X.Y/Z accuracy | |
| Cutting travel | 520mm | Cutting spindle | Positioning accuracy | ±0.05/300 | |
| Max size of raw material | W180*H90mm | Spindle speed | 0-6000rpm | Repeat positioning accuracy | ±0.02/300 |
| Distance from spindle to workbench | 25-135mm | Spindle specification | Dia 30mm | Others | |
| Drilling Spindle | Tool release method | Manual tool change | Air pressure | 6±0.5 kg/m3 | |
| Spindle speed | 0-24000rpm | Saw quantity | 1 piece | Machine size | 2250x1850x1850mm |
| Spindle power | 2.2KW | Max diameter of saw blade | Dia 405 | Net weight | 2000kg |
| Spindle spring collet | ER20 | Feed | |||
| Tool release method | Manual tool change | X/Y/Z fast feed | 30/30/15m/min | ||
Complete Processing Flow:
1) Raw Material Feeding:
Put the aluminum profile/heat sink raw material into the feeding rack, and the machine will automatically feed the material. Raw material in, finished workpiece out.
2) Program Setting:
Import the CAD drawing via USB, set processing parameters, and the system will automatically generate the processing program without manual G-code writing.
3) One-Clamping Single-Side two drillings and two tappings Processing :

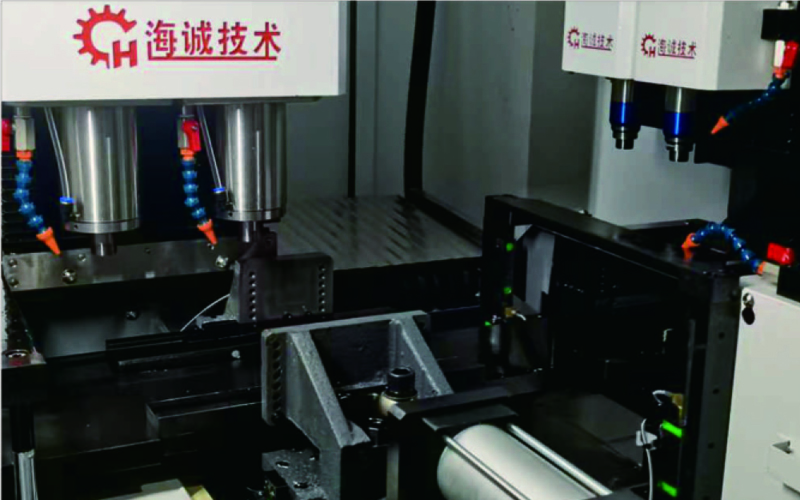

The machine clamps the raw material firmly, and the independent spindles complete drilling, tapping and cutting on the top and two side surfaces synchronously.
4) Finished Product Output:
After processing, the finished product is automatically output, and the next batch of raw materials is fed in for continuous processing.
Why Choose Haicheng HC-YT2018-2 ?
Cost Saving: One machine replaces multiple single-process equipment, reducing equipment investment and workshop space; automatic processing cuts labor costs by 50%+.
Efficiency Improvement: single-side two drilling and two tapping synchronous processing eliminates tool change and clamping time, improving production efficiency by 40%+ compared with traditional machines.
Precision Guarantee: High-precision guide rail and spindle design ensure stable product quality and reduce defective rate.
Customized Service: We support customized solutions according to your product size, processing requirements and output, such as Z-axis extension, special fixture customization, etc.
Global After-Sales Support: All machines are with a 1-year warranty for spare parts, and online technical support.
High Cost-Effectiveness: Compared with imported equipment of the same level, Haicheng's machine has a more competitive price, helping small and medium-sized enterprises achieve automated production upgrades at a lower cost.
Get Your Customized Solution
If you are looking for a high-efficiency, high-precision single-side composite 2 drillings 2 tappings cutting 3-in-1 machine, the HC-YT2018-2 is your ideal choice. Send us your product drawings, processing requirements and expected output, and our professional engineers will provide you with a tailored solution and quotation within 24 hours.
