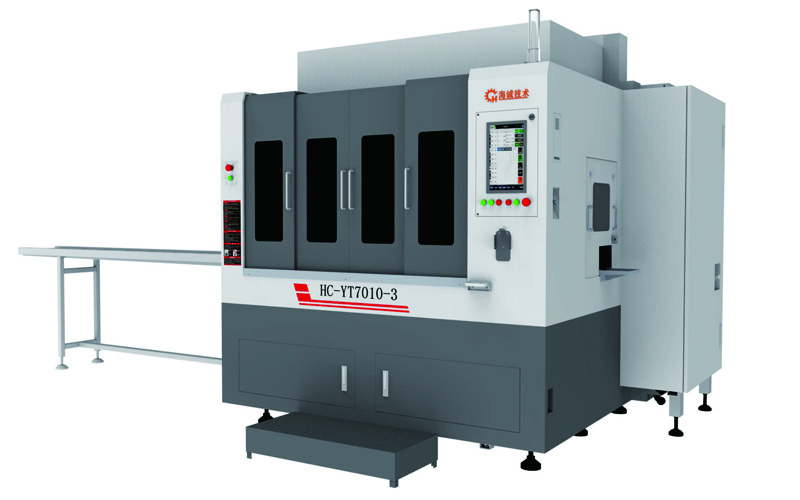

Three-sided drilling milling tapping cutting integrated machine HC-YT7010-3
- 3-side synchronous front & side drilling tapping cutting
- USB CAD import no manual G-code programming
- auto feeding & discharging continuous production
- dual pump high-pressure chip flushing cooling system
- Taiwan precision screw linear guide rails
- stable multi-hole machining precision
- custom non-standard fixture available
Description
HC-YT7010-3 Three-Sided Composite Drilling Tapping Cutting Integrated Machine.
3-Side Simultaneous Drilling / Tapping / Cutting All-In-One Aluminum Profile Processing Machine.
1. Front + Dual Side Multi-Channel Synchronous Machining, Zero Tool Change Waiting Time.
2. Intelligent U-Disk CAD Import, No Manual G-Code Programming Required.
3. Full Auto Feed & Discharge, Uninterrupted Continuous Mass Production.
Product Overview:

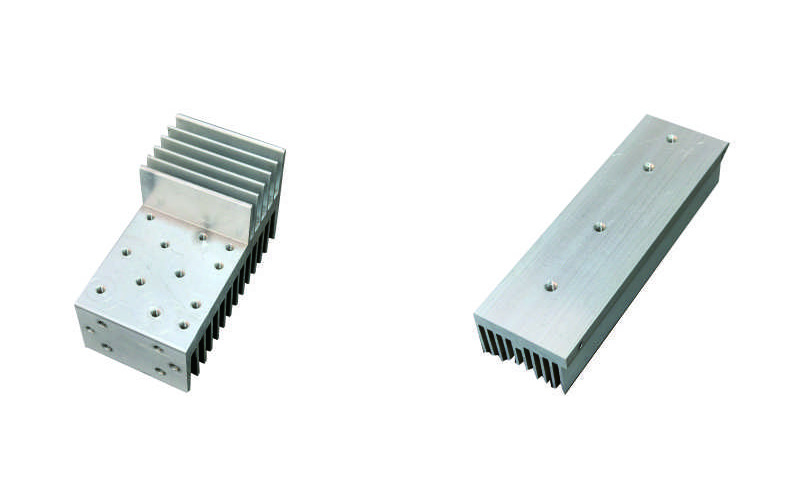

HC-YT7010-3 three-sided composite drill tap cut integraged machine are independently developed by Haicheng Technology, custom-built for multi-sided machining of long aluminum extruded profiles, heat sinks, aluminum hardware and structural parts. Adopts integrated composite mechanical structure to realize full automatic workflow: raw material feeding → three-sided simultaneous drilling/tapping/cutting → finished parts auto output. Equipped with independent front drilling-tapping unit + two side drilling-tapping units + cutting saw unit, all axes work synchronously without idle waiting time. The intelligent touch control system supports direct CAD drawing import via USB flash drive, eliminating complicated manual G-code programming. Dual pump high-pressure flushing cooling system is equipped for easy scrap cleaning and long-term stable 24h non-stop operation, greatly cutting labor cost and boosting daily output for aluminum processing factories.
Core Machine Features:
★ Integrated All-In-One Composite Machining Complete automatic production line: raw profile input to finished workpiece output in one machine. No separate drilling, tapping, cutting equipment required, save factory floor space.

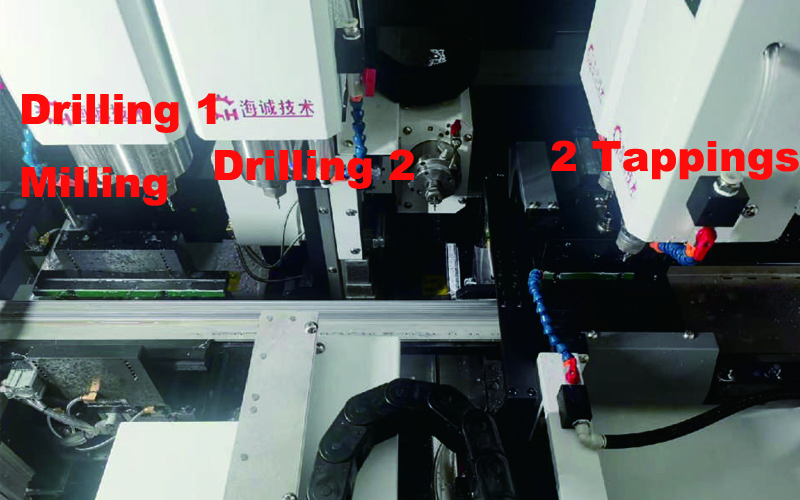

★ Multi-Channel Synchronous Working, Ultra-High Efficiency Independent front + double side drilling & tapping units plus cutting spindle operate simultaneously. No waiting time for tool switching, achieve non-stop continuous production, drastically improve processing throughput.
★ Intelligent Programming, Low Operation Threshold Intelligent touchscreen operating system supports U-disk CAD drawing direct import. System auto-generates machining path, workers don’t need professional G-code programming skills, reduce labor training cost.
★ Specialized For Multi-Hole Multi-Side Aluminum Parts Optimized for workpieces needing front + side holes (2 drill + 2 tap demand). Fast drilling speed, stable tapping precision, consistent finished quality far superior to universal single-side machining equipment.
★ Uninterrupted Continuous Mass Production Support long-hour non-stop running. Machine completes drilling, tapping and cutting at the same time in one cycle, maximize equipment utilization rate, lower labor intensity and production cost.
★ Easy Maintenance & Fast Chip Cleaning Built-in high-pressure water gun + bottom flushing circulation cooling system. Quickly wash away aluminum scraps and cutting oil, daily cleaning & maintenance work takes minimal time, guarantee long-term stable machine performance.
