HC-YT1316A Composite Drilling and Tapping Center
Description

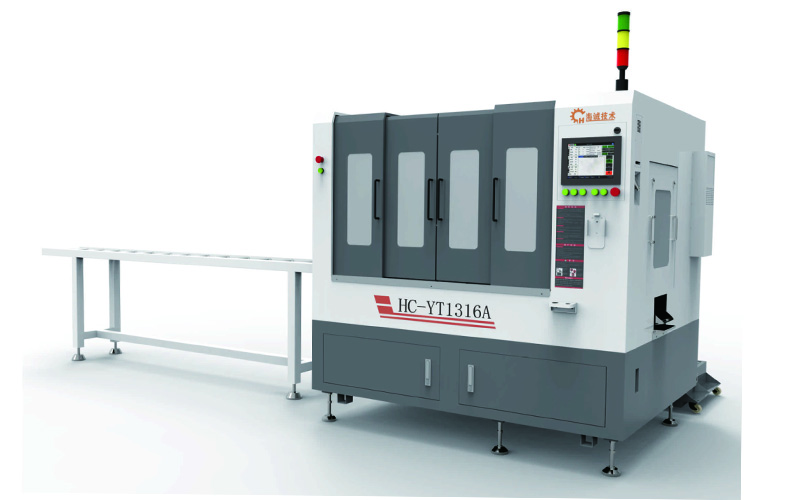

HC-YT1316A Composite Drilling and Tapping Center.
The HC-YT1316A is a high-efficiency, cost-effective CNC composite drilling and tapping center, specially designed for aluminum profile processing, hardware parts manufacturing, and small-to-medium batch customized production. It integrates drilling, tapping, and cutting functions in one station, realizing a seamless workflow from raw material input to finished product output, which is ideal for small and medium-sized factories looking to improve production efficiency and reduce labor costs.
Core Equipment Features
✅ One-Stop Composite Processing Design** Adopting a composite structure design, this machine completes all processes from raw material input to finished product output in a single setup. It eliminates the need for multiple workstations and manual workpiece transfer, cutting processing time by over 50% compared to traditional single-function machines.
✅ Intelligent Programming System, No G-Code Required** Equipped with an intelligent operating system, the HC-YT1316A supports direct USB file import, eliminating the need for complex G-code programming. Even new operators can master the operation in 1-2 days, greatly reducing training costs and labor intensity, making it perfect for factories with limited skilled CNC personnel.

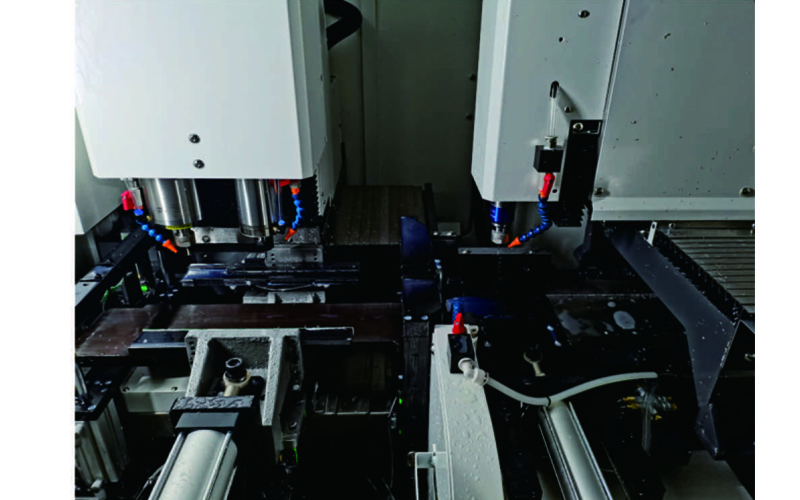

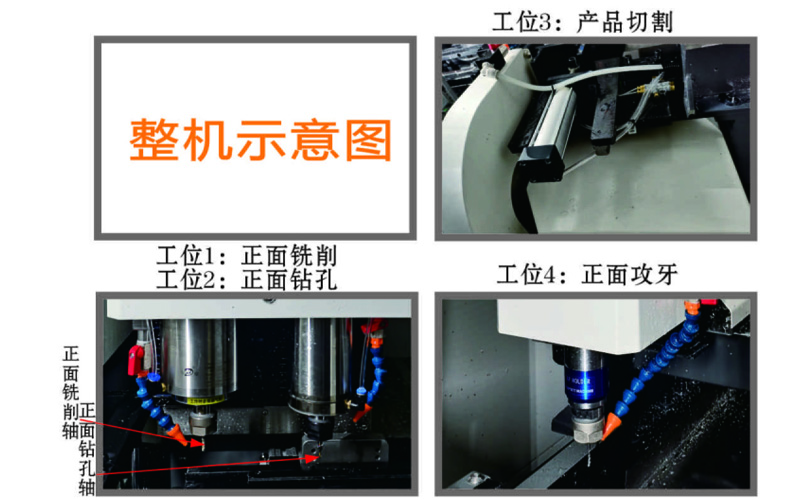

✅ Independent Spindle for Multi-Process Machining** With independent drilling, tapping, and cutting units, this machine has unique advantages in processing products with single-hole threads and positioning pin holes. It can complete simple milling, drilling, and tapping simultaneously, replacing multiple separate machines and saving workshop space.
✅ Multi-Channel Synchronous Continuous Processing** The powerful multi-channel function enables uninterrupted continuous processing of multiple workpieces. It can complete wire drawing and cutting while drilling, maximizing equipment utilization, greatly improving processing efficiency, and reducing labor intensity and labor costs.
✅ Easy Maintenance with High-Pressure Cleaning System** Equipped with a high-pressure water gun and bottom flushing water system, the machine tool's cleaning and maintenance become more convenient. It effectively removes metal chips and debris during long-time operation, reducing the risk of jams and extending the service life of the equipment.
Technical Parameters.
| Item | Specification | Item | Specification | Item | Specification | Standard configuration |
| X/Y/X-axis travel | 130/160/100 mm | Tapping spindle speed | 0-3000rpm | Cutting fast feed | 15 m/min | Taiwan screw guide |
| Feeding stroke | 130 mm | Tapping diameter range | M2-M6 | Cutting feed | 0-10000 mm/min | Intelligent programming system |
| Cutting stroke | 420 mm | Cutting spindle speed | 0-6000rpm | Positioning accuracy | ±0.05mm/300m | Servo motor |
| Max size of raw materials | W160xL90mm | Cutting spindle spec | Φ30 | Repositioning accuracy | ±0.02mm/300mm | Dual electric pump cooling system |
| Distance of spindle to workbench | 25-125 mm | Cutting tool change mode | manual | Air pressure | 6±0.5 | Handwheel simulation |
| Drilling spindle speed | 0-24000rpm | Saw blade capacity | 1 piece | Total power | 10.5KW | Full cover protection |
| Drilling spindle power | 3.2/2.2KW | Max saw diameter | Φ405 | Machine size | 1950x1550x1850 mm | Micro-lubrication cooling system |
| Drilling spindle collet | ER20 | X/Y/Z fast feed speed | 30/30/15 m/min | Net weight | 2000 kg | |
| Tool release mode | Manual | Feed speed | 0-30 m/min |
Application Scenarios:
This machine is widely used in:
- Aluminum profile processing (window frames, door profiles, industrial profiles) .

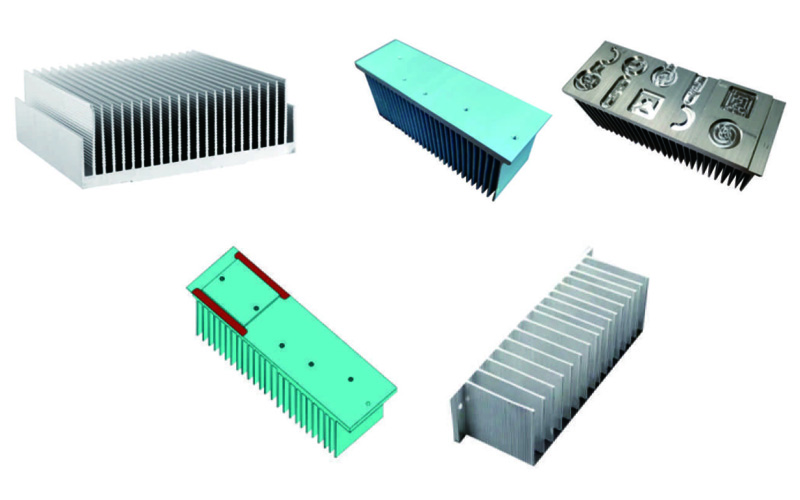

- Aluminum heat sink manufacturing (new energy, 3C electronics, solar panels).
- Hardware parts processing (automotive parts, electronic components) .
- Small and medium-sized factories with customized production needs.
After-sales Service :
We provide 1-year warranty, global technical support, operation training, and spare parts supply. Contact us to get a free quotation, processing video and detailed product brochure.
