3-Side Heat Sink Processing with HC-YT7011-3 Composite Drilling & Tapping Center
- 3-side synchronous machining
- one clamping multi-process
- intelligent programming
- independent spindle
- high precision
- easy maintenance
- continuous production
- customized solution.
Description

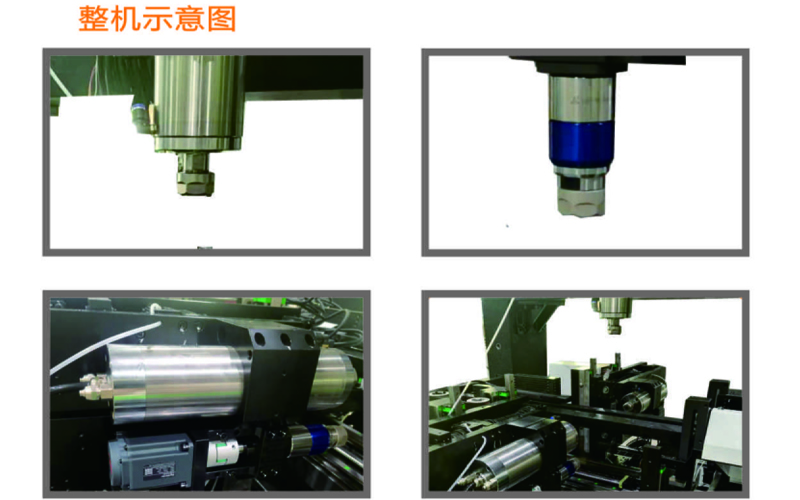

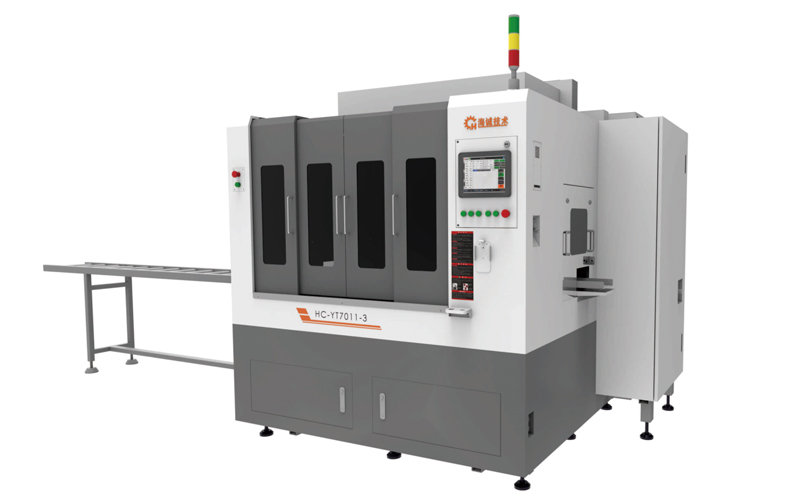

HC-YT7011-3 3-Side Composite Drilling & Tapping Center
High-Efficiency 3-Side Synchronous Machining for Aluminum Profile & Heat Sink
In modern industrial production, aluminum profiles and heat sinks are core components in electronics, new energy, LED lighting and machinery industries. Their processing quality directly determines product performance, while traditional multi-clamping, multi-tool change processing methods have low efficiency, high labor costs and unstable accuracy, which have become the biggest pain points for manufacturers.
Haicheng Technology's HC-YT7011-3 3-Side Composite Drilling & Tapping Center is a high-performance CNC machine independently developed for this demand. It integrates drilling, tapping and cutting functions in one, realizing automatic 3-side processing of the top and two side surfaces of workpieces in one clamping, completely solving the pain points of traditional processing, and helping enterprises achieve efficient, precise and automated mass production.
1. Core Advantages of HC-YT7011-3
1.1 Integrated 3-Side Composite Machining Structure
Adopt advanced composite structure design, realize the fully automated process of "raw material input, direct finished product output". The machine can complete drilling, tapping and cutting on the top and two side surfaces of the workpiece simultaneously in one clamping, eliminating multiple clamping errors and tool change time. Compared with traditional processing, the overall efficiency is increased by 40%+, which is especially suitable for mass production of profiles and heat sinks with 3-side processing requirements.
1.2 Intelligent Programming & Easy Operation
Equipped with a high-performance intelligent operating system, it supports direct import of CAD drawings via USB, no manual G-code programming required. This greatly simplifies the programming process, reduces the technical threshold for operators, shortens production preparation time, and even inexperienced workers can master the operation quickly. It is also equipped with a handwheel simulation function for convenient debugging and parameter setting.
1.3 Independent Spindle for High-Efficiency Processing
Adopt independent spindle design for drilling, tapping and cutting units, with fast drilling speed and synchronous tapping performance, completely eliminating tool change time. The multi-channel synchronous operation supports simultaneous processing of multiple processes, making full use of equipment potential, reducing labor intensity, and allowing a single operator to manage multiple machines, effectively cutting labor costs by 50%+.
1.4 Continuous Uninterrupted Processing
The machine supports uninterrupted continuous machining, which can complete tapping and cutting while drilling, maximizing the use of equipment resources and reducing idle time. This not only improves production efficiency but also reduces labor costs, helping enterprises achieve 24-hour continuous production and maximize equipment value.
1.5 High Precision & Stable Performance
Equipped with high-precision Taiwan screw rail guide and servo motor, the positioning accuracy reaches ±0.05/300mm, and the repetitive positioning accuracy reaches ±0.02/300mm, ensuring the consistency of hole position and thread quality of each workpiece, reducing the defective rate and improving product qualification rate.
1.6 Easy Maintenance & Long Service Life
Equipped with a high-pressure water gun and bottom-edge flushing water system, the machine tool can be cleaned quickly and conveniently, reducing the difficulty of daily maintenance and ensuring long-term stable operation. All key components are selected from well-known brands, with strict quality control throughout the production process, and a failure rate lower than the industry average.
2. Technical Parameters of HC-YT7011-3
| Item | Specification | Item | Specification | Item | Specification | |
| X/Y/Z axis travel | 160/120/100mm | Tapping pindle speed | 0-3000rpm | Cutting fast feed | 15m/min | |
| Feeding stroke | 150mm | Tapping rannge | M2-M6 | Cutting feed | 0-10000mm/min | |
| Cutting stroke | 580mm | Cutting spindle speed | 0-6000rpm | X/Y/Z accuracy | ±0.05/300 | |
| Max size of raw material | W30/120*H65 | Cutting spindle spec. | dia 30mm | Repositioning accuracy | ±0.02mm/300mm | |
| Distance from spindle end face to workbench | 25-125mm | Tool change mode | manual | Air pressure | 6±0.5km/cm2 | |
| Drilling spindle speed | 0-24000rpm | Saw blade capacity | 1 piece | Total power | 13kw | |
| Drilling spindle power | 2.2kw | Max saw blade diameter | dia 355 | Machine size | 2300x2000x2250mm | |
| Drilling spindle collet | ER20 | X/Y/Z fast feed | 30/30/15m/min | Net weight | 2600kgs | |
| Tool release mode | manual | Feeding fast feed | 0-30m/min |
Standard Configuration:
★ Taiwan screw guide.
★ Intelligent programming system.
★ Handwheel simulation.
★ Servo motor.
★ Full cover protection.
★ Dual electric pump cooling system
Special Configuration.
★ Micro-volume lubrication cooling system
★ Customized Non-standard Fixture
★ Z-axis Travel Extension
★ Special Spindle Customization.
3.Application:
The HC-YT7011-3 3-side composite drilling & tapping center is widely used in various industrial fields that require high-precision 3-side processing:
Aluminum Profile Processing: Suitable for industrial aluminum profiles, curtain wall profiles, door and window profiles, etc., completing 3-side drilling, tapping and cutting in one clamping.

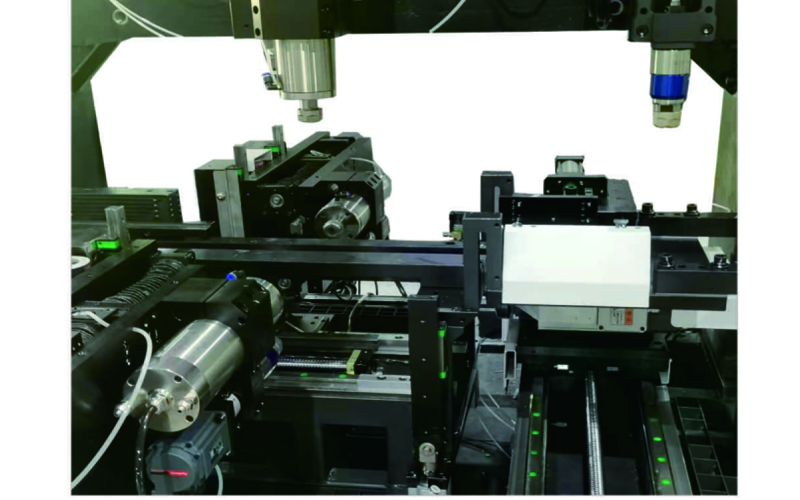

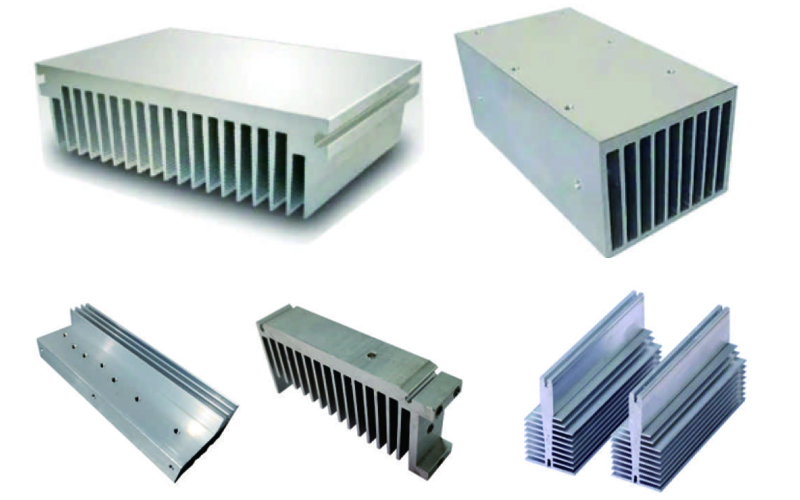

Heat Sink Production: Specialized in automatic 3-side processing of aluminum heat sinks for electronics, LED lights and new energy equipment, realizing mass production with high efficiency.
Hardware Parts Machining: Applicable to small hardware parts that require 3-side processing, improving product consistency and reducing manual errors.
Non-ferrous Metal Processing: Suitable for copper profiles, aluminum alloy parts and other non-ferrous metal workpieces, with stable processing performance.
4. Complete Processing Flow:
Raw Material Feeding: Put the aluminum profile/heat sink raw material into the feeding rack, and the machine will automatically feed the material.
Program Setting: Import the CAD drawing via USB, set processing parameters, and the system will automatically generate the processing program without manual G-code writing.
One-Clamping 3-Side Processing: The machine clamps the raw material firmly, and the independent spindles complete drilling, tapping and cutting on the top and two side surfaces synchronously.
Finished Product Output: After processing, the finished product is automatically output, and the next batch of raw materials is fed in for continuous processing.
5. Why Choose Haicheng HC-YT7011-3?
Cost Saving: One machine replaces multiple single-process equipment, reducing equipment investment and workshop space; automatic processing cuts labor costs by 50%+.
Efficiency Improvement: 3-side synchronous processing eliminates tool change and clamping time, improving production efficiency by 40%+ compared with traditional machines.
Precision Guarantee: High-precision guide rail and spindle design ensure stable product quality and reduce defective rate.
Customized Service: We support customized solutions according to your product size, processing requirements and output, such as Z-axis extension, special fixture customization, etc.
Global After-Sales Support: All machines are ISO & CE certified, with a 1-year warranty for spare parts, and 24-hour online technical support.
High Cost-Effectiveness: Compared with imported equipment of the same level, Haicheng's machine has a more competitive price, helping small and medium-sized enterprises achieve automated production upgrades at a lower cost.
6. Get Your Customized Solution
If you are looking for a high-efficiency, high-precision 3-side composite drilling & tapping center, the HC-YT7011-3 is your ideal choice. Send us your product drawings, processing requirements and expected output, and our professional engineers will provide you with a tailored solution and quotation within 24 hours.
