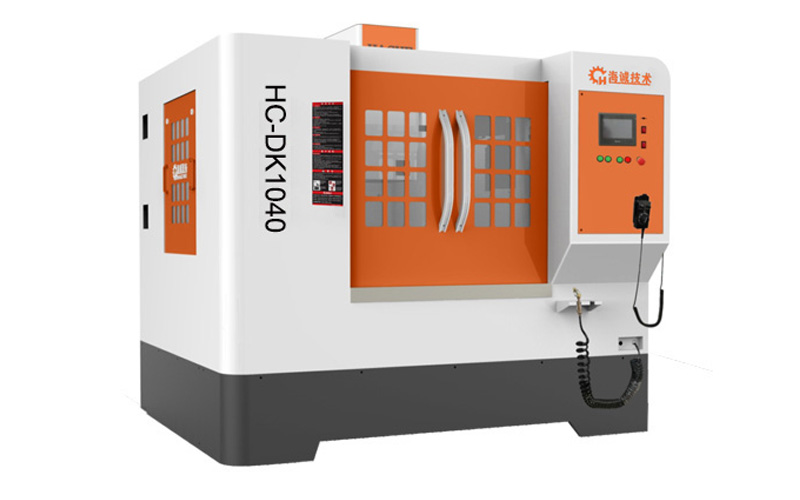

CNC drilling tapping center for aluminum die-casting street light housing (HC-DK1040)
- Big stroke for large street light housings
- High-speed tapping
- 10-tool automatic changer
- High rigidity structure
- Global after-sales service.
Description

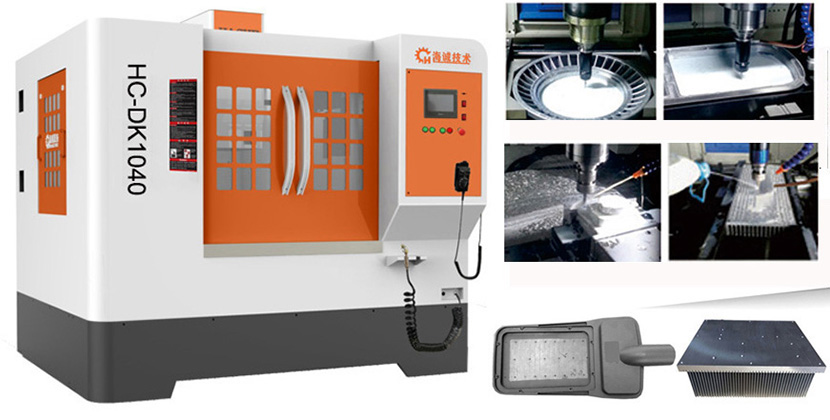

HC-DK1040 CNC drilling tapping center for aluminum die-castin light housing and heat sink.
Our HC-DK1040 CNC drilling tapping center is specially designed for processing the aluminum die casting street light housing and heat sink. It solves the common pain points of lighting manufacturers, such as low processing efficiency, inaccurate positioning, and high labor costs, helping you achieve stable batch production. HC-DK1040 are exported to India, Vietnam, Tunisia, Turkey, Poland etc.
2. Core Advantages of HC-DK1040:
2.1 Gantry Structure & Marble Bed (Stability for Precision).
Adopting a gantry structure and marble bed, our HC-DK1040 ensures no deformation, long service life, and non-magnetization, which is critical for maintaining high precision in aluminum die casting lamp housing processing. Even after long-term batch production, the machine can still guarantee consistent drilling and tapping accuracy.
2.2 BT30 Spindle & High-Speed Tapping (Efficiency for Lamp Housing).
Equipped with BT30 mechanical spindle and high-torque servo motor, the HC-DK1040 features fast response in high-speed tapping and excellent synchronization performance. It can quickly complete the hole drilling and thread tapping of aluminum die casting street light housings, greatly improving production efficiency.
2.3 10-Tool Magazine (Labor & Time Savings).
The bamboo basket type 10-tool magazine allows one-time clamping for multiple specifications of holes and threads, avoiding positioning errors caused by secondary clamping and saving manual tool change time. This is especially suitable for the multi-process processing of aluminum lamp shades.
2.4 Easy Operation & Maintenance.
With a user-friendly operating system and USB data import (no G-code programming required), the machine is easy to operate even for workers without professional CNC experience. The high-pressure water gun is equipped at the bottom for automatic flushing and chip removal, making machine cleaning and maintenance more convenient.
3. Technical Parameters:
Item Specification Item Specification X/Y/Z Travel 1000×400×180 mm Worktable size 1100x450mm Tool mode BT30 Tapping speed 0-3000rpm Spindle Speed 0-8000rpm Max. tool length 200mm Tool Capacity 10pcs Gantry width(inside) 1200mm Tool Change Time 5 sec. Spindle taper hole NO 30 Positioning Accuracy ±0.015/300 mm Air pressure 5kg/cm2 Repeat Positioning Accuracy ±0.008/300 mm Site area 2600x1750x2000mm Total Power 4.5KW Machine weight 2500kg
Note: Parameters are for reference only, please confirm with our sales team for the latest data.
Main parts and brand.
| HIWINN ball screws and guides | SUS semi-enclosed protection form |
| Double pneumatic clamp | Standard tool setting instrument |
| Panasonic spindle motor | Cap type tool magazine |
| Delta servo motor | Hand-wheel tool setting (option) |
| Touch screen input or U-disc imput | Fourth Axis (option) |
| BT30 mechanical spindle |
4. Application:

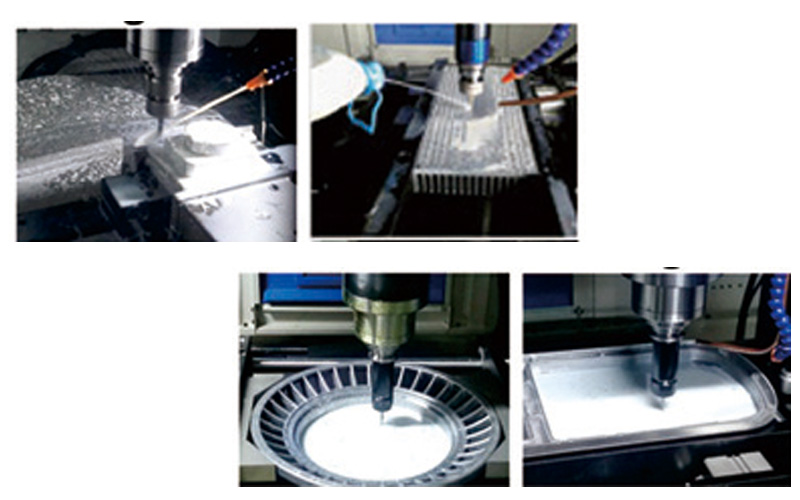

HC-DK1040 is widely used in the processing of aluminum die casting street light housings, heat sink, and other aluminum products. It can efficiently complete drilling and tapping processes for various sizes of street light housings, meeting the batch production needs of lighting manufacturers in Southeast Asia, Latin America, and Eastern Europe.

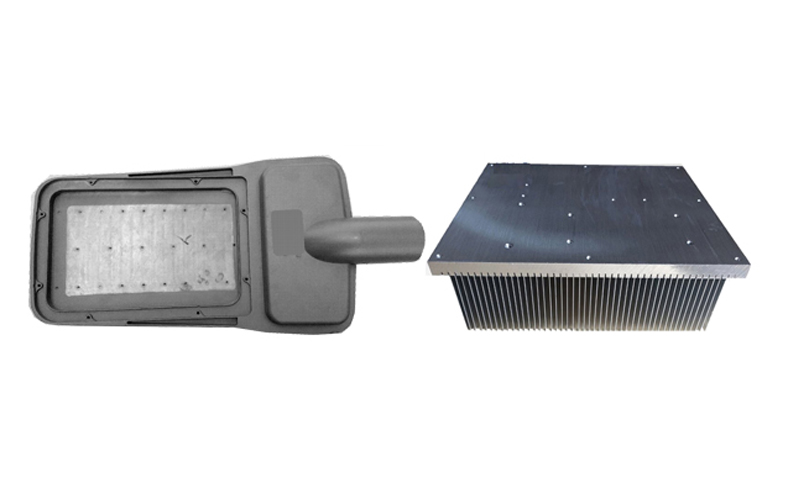

Typical processed parts:
Aluminum die casting street light housing.
Aluminum die casting floor light housing.
Aluminum heat sink.
Aluminum parts.
Case Study: Tunisian die casting street light Factory:
A Tunisian street light manufacturer was facing low efficiency and high scrap rates in processing aluminum die casting light housings. After adopting our HC-DK1040 CNC drilling tapping center, their production efficiency increased by 40%, and the scrap rate decreased by 25%, successfully meeting the demand for large-scale orders from the Indian and Southeast Asian markets.
6. After-sales service and suport:
We provide comprehensive after-sales service for customers in India, Vietnam, Thailand, Iran, Poland, Russia, Brazil, Mexico, and other countries:
Remote technical support and online training.
On-site installation and operator training (if required).
Spare parts supply with fast delivery.
24/7 customer service for emergency issues.
If you are looking for a high-efficiency CNC drilling tapping machine for aluminum die casting street light housing processing, please contact us today. Our engineers will provide you with a customized solution based on your production needs and target market.
